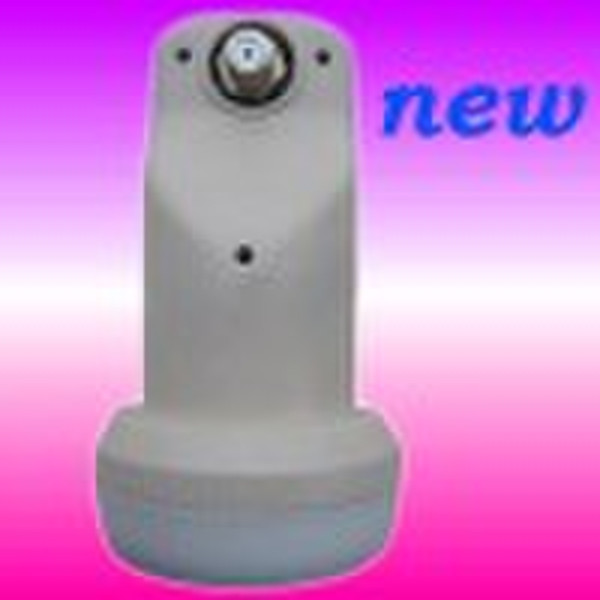

Strong KU Band single LNB
original price: 1,50 USD
SHANGJUAN LI
Contact person
Basic Information
Ku bandLNB Input Frequency: 11.7-12.75GHz Output Frequency : 950-2000MHz Local Oscillator Frequency : 10.75GHz Local Oscillator Tolerance : 2MHz(-40-+60) Conversion Gain : 50dB-62dB Gain Flatness : +/-0.5dB/27MHz -60dBc/Hz(@10kHz(Max.) Phase Noise : -85dBc/Hz(10kHz(Max.) -105dBc/Hz(@100kHz(Max.) Noise Figure : 0.4dB(Typ.) Cross Polarization : 25dB(Typ.) Output VSWR : 2.0:1@75 Polarization Selection : (RHCP)11.0-14.0VDC / (LHCP)16.0-20.0VDC DC Current Consumption : <150mA Operating Temperature : -40-+65 Storage Temperature : -45-+70
Delivery terms and packaging
Packaging Detail: 18x10x8cmone piece in one giftbox , 100pcs in a carton0.2KG per piece Delivery Detail: 7-15days
Port: guangzhou
